Gas Power Units





Gas Power Units     It must say "OZTEC" to be the industry's best concrete vibrator...

Powerful, portable and reliable…Oztec gas power units, provide ultimate and immediate adaptability on the job. Utilizing rugged and dependable Honda gasoline engines, coupled to our "speed-up" transmission, vibrator heads develop 12,000 vpm and never drop below 10,000vpm...Even in the heaviest low slump concrete loads. (Tested in near 0 slump concrete). This 10,000 - 12,000vpm range is essential for high-quality concrete.

(Direct drive units "scream", have short lives and usually drop below 10,000vpm when the head is immersed in concrete).

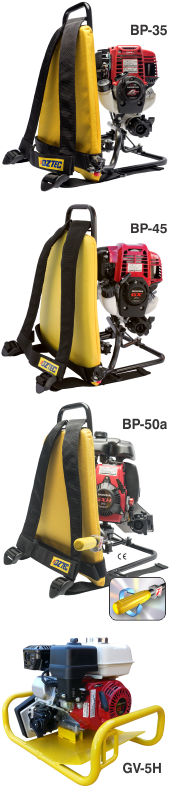

Two powerful Backpack Models:
Mounted on very comfortable frames, OZTEC backpacks BP-35 and BP-50a allow operators incredible maneuverability around the job. Run time with full tank approximately 1 hour plus.



BP-35 Runs heads up to 1 ½" diameter. Honda 1 3/4 HP, 4 stroke, Weight 19lbs.



BP-50a Runs heads up to 2 ½" diameter. Honda 2 ½ HP,4 stroke, Weight 24lbs.

The BP-50a is equipped with a totally enclosed rotary throttle and a conveniently located kill switch on the same handle.













GV-5 Carry handle

GV-5W Wheelbarrow

All Oztec power units come standard with the Quick Disconnect "QD" system

Our Carry Handle and Wheelbarrow models, with flexible shaft storage, are ideal for any job site. Utilizing Briggs & Stratton and Honda engines, these power plants run all steel and rubber heads up to 2 ¾ inch diameter.






Click here for the selection

chart to match the proper

combination of power unit,

shaft and vibrator head
